Anti Climbing Turnstile Door Access Control Customized Automatic

Product Categories

Shenzhen CXT Technology & Development Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Anti Climbing Turnstile Door Access Control Customized Automatic

Place of Origin : shenzhen

Brand Name : cxt

Certification : Single label product appearance patent

MOQ : 1

Price : 90~3500USD

Packaging Details : Cartons and wooden boxes

Delivery Time : 20 working days

Payment Terms : Public Account

Supply Ability : 500ps

Model Number : CXT-BW130H

Mechanism dimension : 108*450 mm

Dimension : 1200*300*980mm (47''*11.8''*38.6''),1200 * 280 * 1000mm,1200 * 140 * 980 (mm)

Usage : Subway station mall,Multi-application

Operating temperature : -45°C-60°C,-220°C to +65°C

Access width : Access Width,≤550mm

Driving motor : supermarket entrance barrier gate,24V Brush DC Motor

Contact Now

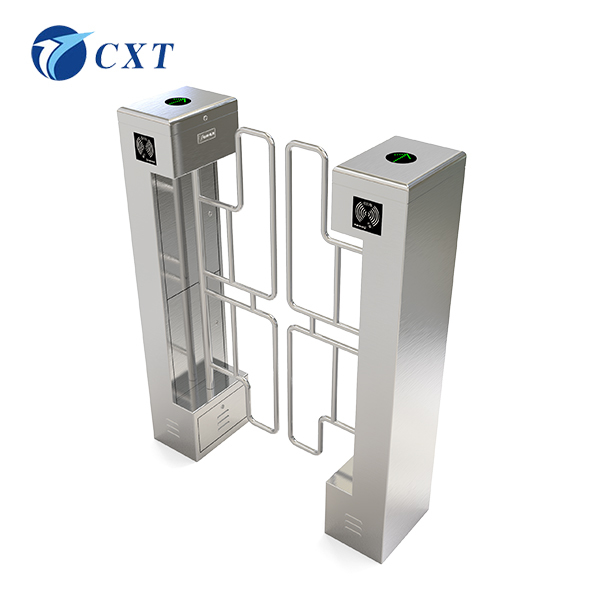

Brushless motor anti-collision full height anti-climbing Swing Gate CXT-BW130H

Model	CXT-BW130H
Specifications	3802801600mm
Pole length	600mm (standard) -900mm/stainless steel tube
Process	Produced by laser, bending, cutting, welding, polishing, grinding and other processes
Material	National standard 304 stainless steel (201 stainless steel, iron paint can be customized)

CXT-BW130H Customized Swing Gate

Anti Climbing Turnstile Door Access Control Customized Automatic

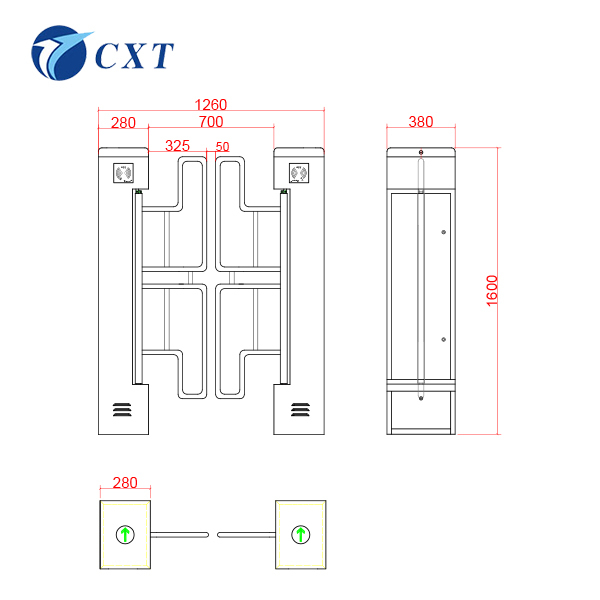

Model: CXT-BW130H Specifications: Length 380*Width 280*Height 1600mm
Unique advantages of CXT-BW130H swing gate
1. Brushless motor is used, which has a longer service life.
2. ARM control technology is used, which is more powerful and has better scalability.
3. Modular design, simpler structure and easier maintenance.
4. Multi-level anti-collision buffer reduces mechanical damage caused by frequent or continuous collisions.
5. Super strong self-protection function: not afraid of collision, not afraid of retreat, sleep when necessary, and automatically recover.
6. Settings can be encrypted and reset.
7. Failure rate <1%

Anti Climbing Turnstile Door Access Control Customized Automatic

Serial number	name	general swing gate	anti-collision swing gate	brushless swing gate
1	drive	motor	brushed	brushless
2	positioning principle	optical coupling fixed point	1/500 decoding	brushless intelligent positioning
3	positioning method	gear positioning	clutch positioning	intelligent reverse thrust no lock
4	buffer	no	primary buffer	continuous buffer
5	anti-reverse	no	yes	yes
6	running speed	uniform speed	deceleration	acceleration and deceleration
7	mechanical wear	large	no	small
8	illegal mechanical alarm	(no infrared) no	yes	yes
9	service life	1-3 years	3-5 years	5-10 years
10	transmission life	3 million times	5 million times	10 million times
11	parameter setting	dial code	dial code	digital button
12	memory	no	Yes	Yes
13	Fire input	Yes	Yes	Yes
14	Feedback signal output	Yes	Yes	Yes
15	Power off	normally open	Yes	Yes
